High Resolution 4 color large format printing machine For Digital Printing

High Resolution 4 color  large format printing machine For Digital Printing
High Resolution 4 color  large format printing machine For Digital Printing High Resolution 4 color  large format printing machine For Digital Printing High Resolution 4 color  large format printing machine For Digital Printing High Resolution 4 color  large format printing machine For Digital Printing

বড় ইমেজ :  High Resolution 4 color large format printing machine For Digital Printing

পণ্যের বিবরণ:
Place of Origin: Japan
পরিচিতিমুলক নাম: SAER
সাক্ষ্যদান: CE Certification
Model Number: CSR1600
প্রদান:
Minimum Order Quantity: 1 Set
মূল্য: 17500 USD
Packaging Details: Non fumigation wooden package
Delivery Time: 10 Working days after receive your payment
Payment Terms: T/T, Western Union
Supply Ability: 100 Sets per month
বিস্তারিত পণ্যের বর্ণনা
Application: Indoor & Outdoor Size Of Panel: 1.6m
Type: Inkjet printer Usage: Cloths Printer, Fabric printer
Automatic Grade: Automatic Color & Page: Multicolor
Print Head: Epson DX5 Material: Polyster,Cotton,Wool and Silk Fabric
Ink Type: Sublimation,Reactive,Pigment Ink Color Mode: Dual CMYK
Printing Speed: 15.5 sqm / h in 4 pass Compatible OS: Win XP&Win 7
Rip Software: Maintop 5.3 Rip software Or Neostampa 8 Optional
লক্ষণীয় করা:

mutoh printing machine

,

mutoh dye sublimation printers

High Resolution 4 color  large format printing machine For Digital Printing​





Detailed Specification



Name Completely Sublimation System
Model CSR-1600

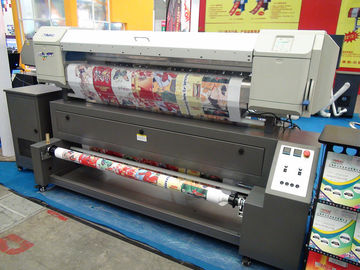

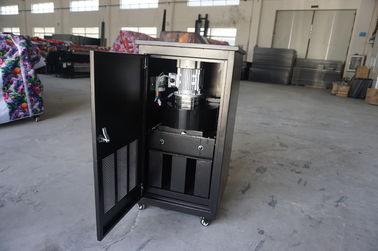

Introduce One SR1600 Heat Transfer Machine , One MUTOH VJ1604 Printer , One Filter
Profile Completely Sublimation machine , can produce Flags directly.
details
MODEL CSR-1600
Maximum media width 1,625mm
Printing Method PIEZO Inkjet
Print Color 4 color (Cyan, Magenta, Yellow, Black)
Printhead Height Controll 1.5mm 2.5mm low /High
Maximum Resolution 1440dpi
Printing Speed Resolution Speed
540×720/3Pass 21 m²/h
540×720/6Pass 10.5 m²/h
720×720/4Pass 15.5 m²/h
720×720/8Pass 7.7 m²/h
1440×720(8Pass) 5.9 m²/h
1440×1440(16Pass) 3.0 m²/h
Media Size Maximum Media Thickness: 1.0mm(0.039in.)

Media  diameter

2” or 3”

Maximum weight for roll media

 40kg

Ink Feeding System Cartridge (220ml per Color)
Printing Precision Level ±0.3% or 0.3mm
Head Cleaning Automatic and/or Manual
Interface Ethernet 10Base-T
Operational Power on - Temperature: 16~24°C / Humidity: 40~65%
Power off - Temperature: 10~30°C / Humidity: 20~60%
Power Resources Direct dye sublimation heater: AC 220 V, 1 phase + N+ PE, 16A, 50/60 Hz
Printer: AC 220V, 2A, 50/60Hz
Weight 560KG
External Shape 101x287x185 CM
62*56*110CM
Ink type

Disperse dye ink (Sublimation ink)

Media type

Polyester



Specifications



1,Far Infrared Blackbody Tube Radiation Electro thermal Heating, our tuble can work at least 10000 hours.
2, our machine have excellent heat insulation, can same more power for you.
3, Easy to load the media in and out oven during your machine working
4, Blackbody tuble have more thermal efficiency

5, Intelligent PID Temperature Control

6,Feeding and Taking up Are synchronous
7, Taking up can choose roll to roll .

8, Quick Tail Gas Treatment
9,Convenient to Maintain
10,Easy to Set up and Operate

11,Easy to open the caver to clean inside of oven
12,Easy to change the active carbon from the filter

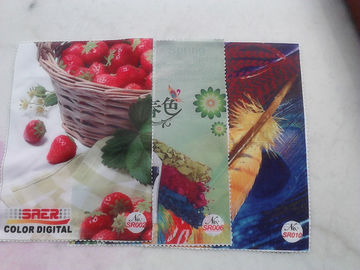

Printing Sample

High Resolution 4 color  large format printing machine For Digital Printing 0



Advantages



1. Suitable for small lot, Personality, Diversity Printing, Without Limit Of Quantity.

2. The printed image color is bright and vivid with nice color gamut

3. Rapid speed and various printer to choose

4. It  is simple and leave out heat transfer process, one person can operates with high efficency and short time.

5.Low cost and no need of any kind transfer paper, liner breaking the highest costs performance



Application



Textile, flag, poster, banner, tablecloth, wall pictures, interior decoration, indoor and outdoor printing etc



After Sales Service



1. With one year warranty and lifelong technical support.

2. Offer Video and operation manual, and the professional technical staff online guidance.

3. Guarantee prompt warranty service for main parts repairmen and replacement by international courier
