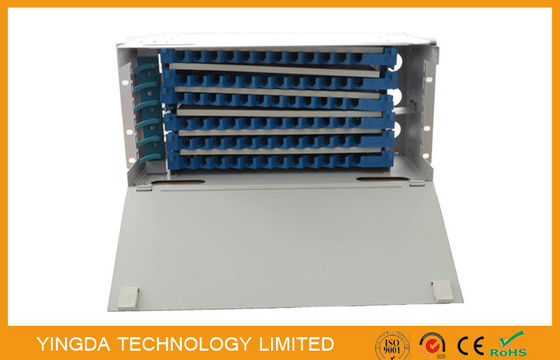

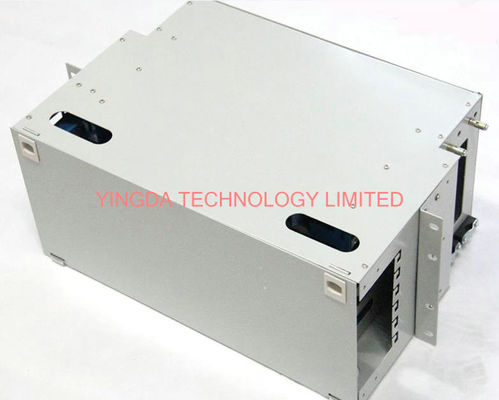

72 Fibers / Core SC FC Rack Mount Fiber Optic Patch Panel Welding Unit Cassette

72 Fibers / Core SC FC Rack Mount Fiber Optic Patch Panel Welding Unit Cassette
72 Fibers / Core SC FC Rack Mount Fiber Optic Patch Panel Welding Unit Cassette 72 Fibers / Core SC FC Rack Mount Fiber Optic Patch Panel Welding Unit Cassette 72 Fibers / Core SC FC Rack Mount Fiber Optic Patch Panel Welding Unit Cassette 72 Fibers / Core SC FC Rack Mount Fiber Optic Patch Panel Welding Unit Cassette

বড় ইমেজ :  72 Fibers / Core SC FC Rack Mount Fiber Optic Patch Panel Welding Unit Cassette

পণ্যের বিবরণ:
উৎপত্তি স্থল: চীন
পরিচিতিমুলক নাম: YINGDA
সাক্ষ্যদান: ISO, SGS
Model Number: ODF-UT72-SC/FC
প্রদান:
Minimum Order Quantity: 50PCS
মূল্য: Negotiable
Packaging Details: 1pc / carton box
Delivery Time: 7 days
Payment Terms: T/T or western Union
Supply Ability: 50,000pcs per month
বিস্তারিত পণ্যের বর্ণনা
Working temperature:: -5~+45 (℃) Fiber optic type: singlemode or multimode
material: cold rolled steel sheet connector type: FC, SC ,LC, ST, E2000
weight: 7.8 kgs polish: UPC APC PC
welding tray capacity: 12 Fibers dimension: 52*33*47cm
max capacity: 72cores welding tray qty: 6 pcs
লক্ষণীয় করা:

rack mount ODF

,

sliding patch panel

72 Fibers / Core SC FC Rack Mount Distribution Frame Welding Unit Cassette







ODF optical fiber distribution frame is standard 19 inch chassis, capacity from 12 core to 96core,

high density, all modular design. This unit box make fiber splicing, fiber cable storage, cable

distribution in one set, each fused distribution module can be individually extracted, satisfy the

 need of on and off the frame operation.



Large capacity optical distribution frame also are good operation, fused distribution module can

be installed FC, SC,ST, LC and many other adapters, and is suitable for common fiber optic

pigtails and ribbon pigtail, equipped with 12 core integrated fiber melting unit tray, can be

directly welded.



Main Technical Parameters



  1. Pressure between high voltage protection place and distribution frame: ≥ 3000V (DC),
  2. 1min no breakdown, no arc
  3. Isolation resistance between high voltage protection place and distribution frame: ≥
  4. 100MΩ/ 500V (DC)
  5. By cascading 12 port splice integration module, configurable 12-144 core, 12 core
  6. per tray
  7. Clamping FC/SC/ST/LC adapter, the adapter was 30 degrees arrangement, ensure
  8. the jumping fiber bending radius≥40mm, but also can avoid the laser burns eyes.

Environment temperature

-5 ~+45°C

Relatively humidity

≤85% (+30°C)

Atmospheric pressure

70~166 KPa

Connector attenuation

(Interchangeable and repeat)

≤0.5dB

Insertion loss

≤ 0.3dB

Return loss

APC ≥ 60dB; UPC ≥ 50dB; PC ≥ 45dB



Structure features



  • Made of high quality cold-rolled plate and the surface electrostatic spray, beautiful appearance
  • The downward and the side door use imported lock
  • The bar adapter panel can be installed adapters like: FC, SC, ST, LC,etc
  • Configure reinforced core and cable fixed seat,complete accessories



Performance advantage



  • Good sealing performance, flexible configuration, quick installation
  • Set  three functions: the optical fiber splice, cable storage, cable distribution in one set
  • Easy operation, reliable grounding, protect the safety
  • The full protection of the jumping fiber, ensure the bending radius ≥ 40mm

Spare parts:

Splice tray, sleeve, buffer tube, mounting screws



72 Fibers / Core SC FC Rack Mount Fiber Optic Patch Panel Welding Unit Cassette 072 Fibers / Core SC FC Rack Mount Fiber Optic Patch Panel Welding Unit Cassette 172 Fibers / Core SC FC Rack Mount Fiber Optic Patch Panel Welding Unit Cassette 2

72 Fibers / Core SC FC Rack Mount Fiber Optic Patch Panel Welding Unit Cassette 3
